Adaptador MJ-MBSP
Adaptador MJ-MBSP - Recto / 04-04 está agotado y se enviará tan pronto como vuelva a estar disponible.
Material: Acero al carbono zincado (libre de cromo hexavalente, RoHS)
| Medida | Código | Dash | Rosca JIC (macho 37°) | Rosca BSP (macho, paralela) | A (mm) | B (mm) | Hex. S1 (mm) | Largo L (mm) |
|---|---|---|---|---|---|---|---|---|
| 04-02 | ADMJMBSP0402 | -04-02 | 7/16-20 UNF | G1/8-28 | 14 | 9 | 14 | 31 |
| 04-04 | ADMJMBSP0404 | -04-04 | 7/16-20 UNF | G1/4-19 | 14 | 12 | 19 | 33 |
| 04-06 | ADMJMBSP0406 | -04-06 | 7/16-20 UNF | G3/8-19 | 13 | 13,5 | 22 | 32 |
| 04-08 | ADMJMBSP0408 | -04-08 | 7/16-20 UNF | G1/2-14 | 14 | 16 | 27 | 39 |
| 06-04 | ADMJMBSP0604 | -06-04 | 9/16-18 UNF | G1/4-19 | 14 | 11 | 19 | 32 |
| 06-06 | ADMJMBSP0606 | -06-06 | 9/16-18 UNF | G3/8-19 | 14 | 12 | 22 | 34 |
| 06-08 | ADMJMBSP0608 | -06-08 | 9/16-18 UNF | G1/2-14 | 14 | 14 | 27 | 39 |
| 08-06 | ADMJMBSP0806 | -08-06 | 3/4-16 UNF | G3/8-19 | 16,7 | 12 | 22 | 36 |
| 08-08 | ADMJMBSP0808 | -08-08 | 3/4-16 UNF | G1/2-14 | 16,7 | 16 | 27 | 42 |
| 08-10 | ADMJMBSP0810 | -08-10 | 3/4-16 UNF | G5/8-14 | 17 | 16 | 30 | 46 |
| 08-12 | ADMJMBSP0812 | -08-12 | 3/4-16 UNF | G3/4-14 | 16,7 | 16 | 32 | 46 |
| 10-06 | ADMJMBSP1006 | -10-06 | 7/8-14 UNF | G3/8-19 | 19,5 | 13,5 | 24 | 42 |
| 10-08 | ADMJMBSP1008 | -10-08 | 7/8-14 UNF | G1/2-14 | 19,5 | 15 | 27 | 45 |
| 10-12 | ADMJMBSP1012 | -10-12 | 7/8-14 UNF | G3/4-14 | 19,5 | 18,5 | 32 | 49 |
| 10-16 | ADMJMBSP1016 | -10-16 | 7/8-14 UNF | G1-11 | 22 | 19 | 32 | 50 |
| 12-08 | ADMJMBSP1208 | -12-08 | 1-1/16-12 UN | G1/2-14 | 22 | 16 | 30 | 49 |
| 12-12 | ADMJMBSP1212 | -12-12 | 1-1/16-12 UN | G3/4-14 | 22 | 16 | 32 | 49 |
| 12-16 | ADMJMBSP1216 | -12-16 | 1-1/16-12 UN | G1-11 | 22 | 18 | 40,7 | 54 |
| 16-12 | ADMJMBSP1612 | -16-12 | 1-5/16-12 UN | G3/4-14 | 23 | 16 | 36 | 53 |
| 16-16 | ADMJMBSP1616 | -16-16 | 1-5/16-12 UN | G1-11 | 23 | 19 | 41 | 55 |
| 16-20 | ADMJMBSP1620 | -16-20 | 1-5/16-12 UN | G1-1/4-11 | 23 | 20,5 | 50 | 59 |
| 20-16 | ADMJMBSP2016 | -20-16 | 1-5/8-12 UN | G1-11 | 24,5 | 18 | 46 | 58 |
| 20-20 | ADMJMBSP2020 | -20-20 | 1-5/8-12 UN | G1-1/4-11 | 24,5 | 20,5 | 50 | 60 |
| 20-24 | ADMJMBSP2024 | -20-24 | 1-5/8-12 UN | G1-1/2-11 | 27,5 | 20,5 | 50 | 60 |
| 24-20 | ADMJMBSP2420 | -24-20 | 1-7/8-12 UN | G1-1/4-11 | 27,5 | 20,5 | 50 | 60 |
| 24-24 | ADMJMBSP2424 | -24-24 | 1-7/8-12 UN | G1-1/2-11 | 27,5 | 23 | 55 | 63 |
| Medida | Código | Dash | Rosca JIC (macho 37°) | Rosca BSP (macho, paralela) | A (mm) | B (mm) | Hex. S1 (mm) | Hex. S2 (mm) |
|---|---|---|---|---|---|---|---|---|
| 04-04 | ADMJMBSP450404 | -04-04 | 7/16-20 UNF | G1/4-19 | 22 | 28 | 14 | 19 |
| 06-06 | ADMJMBSP450606 | -06-06 | 9/16-18 UNF | G3/8-19 | 27 | 32 | 19 | 22 |
| 08-08 | ADMJMBSP450808 | -08-08 | 3/4-16 UNF | G1/2-14 | 29 | 36 | 22 | 27 |
| 12-12 | ADMJMBSP451212 | -12-12 | 1-1/16-12 UN | G3/4-14 | 33 | 42 | 27 | 32 |
| 16-16 | ADMJMBSP451616 | -16-16 | 1-5/16-12 UN | G1-11 | 37 | 41 | 33 | 41 |
| Medida | Código | Dash | Rosca JIC (macho 37°) | Rosca BSP (macho, paralela) | A (mm) | B (mm) | Hex. S1 (mm) | Hex. S2 (mm) |
|---|---|---|---|---|---|---|---|---|
| 04-02 | ADMJMBSP900402 | -04-02 | 7/16-20 UNF | G1/8-28 | 22 | 27 | 11 | 14 |
| 04-04 | ADMJMBSP900404 | -04-04 | 7/16-20 UNF | G1/4-19 | 27 | 33 | 15 | 19 |
| 04-06 | ADMJMBSP900406 | -04-06 | 7/16-20 UNF | G3/8-19 | 27 | 40 | 17 | 22 |
| 04-08 | ADMJMBSP900408 | -04-08 | 7/16-20 UNF | G1/2-14 | 32 | 43 | 22 | 27 |
| 06-04 | ADMJMBSP900604 | -06-04 | 9/16-18 UNF | G1/4-19 | 29 | 36 | 14 | 19 |
| 06-06 | ADMJMBSP900606 | -06-06 | 9/16-18 UNF | G3/8-19 | 29 | 35,8 | 17 | 22 |
| 06-08 | ADMJMBSP900608 | -06-08 | 9/16-18 UNF | G1/2-14 | 37 | 45 | 22 | 27 |
| 06-12 | ADMJMBSP900612 | -06-12 | 9/16-18 UNF | G3/4-14 | 37 | 50 | 27 | 32 |
| 08-04 | ADMJMBSP900804 | -08-04 | 3/4-16 UNF | G1/4-19 | 33 | 33,5 | 19 | 19 |
| 08-06 | ADMJMBSP900806 | -08-06 | 3/4-16 UNF | G3/8-19 | 35 | 46 | 22 | 27 |
| 08-08 | ADMJMBSP900808 | -08-08 | 3/4-16 UNF | G1/2-14 | 35 | 46 | 22 | 27 |
| 08-10 | ADMJMBSP900810 | -08-10 | 3/4-16 UNF | G5/8-14 | 37 | 45 | 22 | 30 |
| 08-12 | ADMJMBSP900812 | -08-12 | 3/4-16 UNF | G3/4-14 | 40 | 49,3 | 27 | 32 |
| 08-16 | ADMJMBSP900816 | -08-16 | 3/4-16 UNF | G1-11 | 46 | 55 | 33 | 41 |
| 10-06 | ADMJMBSP901006 | -10-06 | 7/8-14 UNF | G3/8-19 | 37 | 39,2 | 22 | 22 |
| 10-08 | ADMJMBSP901008 | -10-08 | 7/8-14 UNF | G1/2-14 | 37 | 43,2 | 22 | 27 |
| 10-10 | ADMJMBSP901010 | -10-10 | 7/8-14 UNF | G5/8-14 | 39 | 45 | 22 | 29 |
| 10-12 | ADMJMBSP901012 | -10-12 | 7/8-14 UNF | G3/4-14 | 40 | 49,3 | 27 | 32 |
| 10-16 | ADMJMBSP901016 | -10-16 | 7/8-14 UNF | G1-11 | 40 | 53 | 33 | 41 |
| 12-08 | ADMJMBSP901208 | -12-08 | 1-1/16-12 UN | G1/2-14 | 37 | 49 | 27 | 27 |
| 12-12 | ADMJMBSP901212 | -12-12 | 1-1/16-12 UN | G3/4-14 | 44 | 49,3 | 27 | 32 |
| 12-16 | ADMJMBSP901216 | -12-16 | 1-1/16-12 UN | G1-11 | 49 | 53 | 35 | 41 |
| 16-12 | ADMJMBSP901612 | -16-12 | 1-5/16-12 UN | G3/4-14 | 49 | 53 | 33 | 32 |
| 16-16 | ADMJMBSP901616 | -16-16 | 1-5/16-12 UN | G1-11 | 49 | 58 | 33 | 41 |
| 16-20 | ADMJMBSP901620 | -16-20 | 1-5/16-12 UN | G1-1/4-11 | 57 | 64 | 41 | 50 |
| 20-16 | ADMJMBSP902016 | -20-16 | 1-5/8-12 UN | G1-11 | 57 | 58 | 41 | 50 |
| 20-20 | ADMJMBSP902020 | -20-20 | 1-5/8-12 UN | G1-1/4-11 | 57 | 61 | 41 | 50 |
| 20-24 | ADMJMBSP902024 | -20-24 | 1-5/8-12 UN | G1-1/2-11 | 57 | 61 | 41 | 50 |
| 24-20 | ADMJMBSP902420 | -24-20 | 1-7/8-12 UN | G1-1/4-11 | 63 | 63 | 48 | 50 |
| 24-24 | ADMJMBSP902424 | -24-24 | 1-7/8-12 UN | G1-1/2-11 | 63 | 63 | 48 | 55 |
Cotas en mm según el esquema de la ficha técnica (PDF), salvo que la columna indique otra unidad. Valores de catálogo del fabricante.
Adaptador MJ-MBSP
Descripción
Descripción

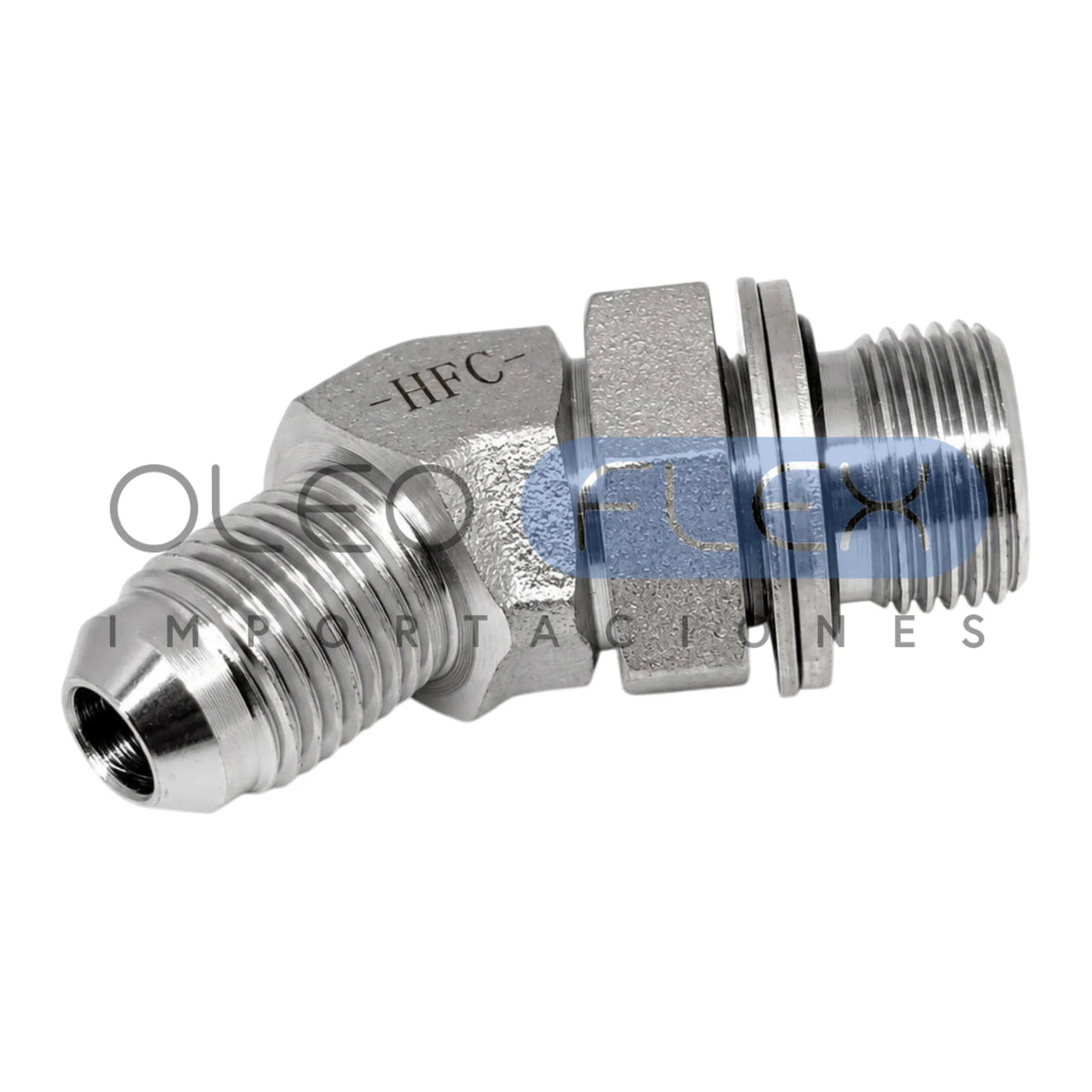

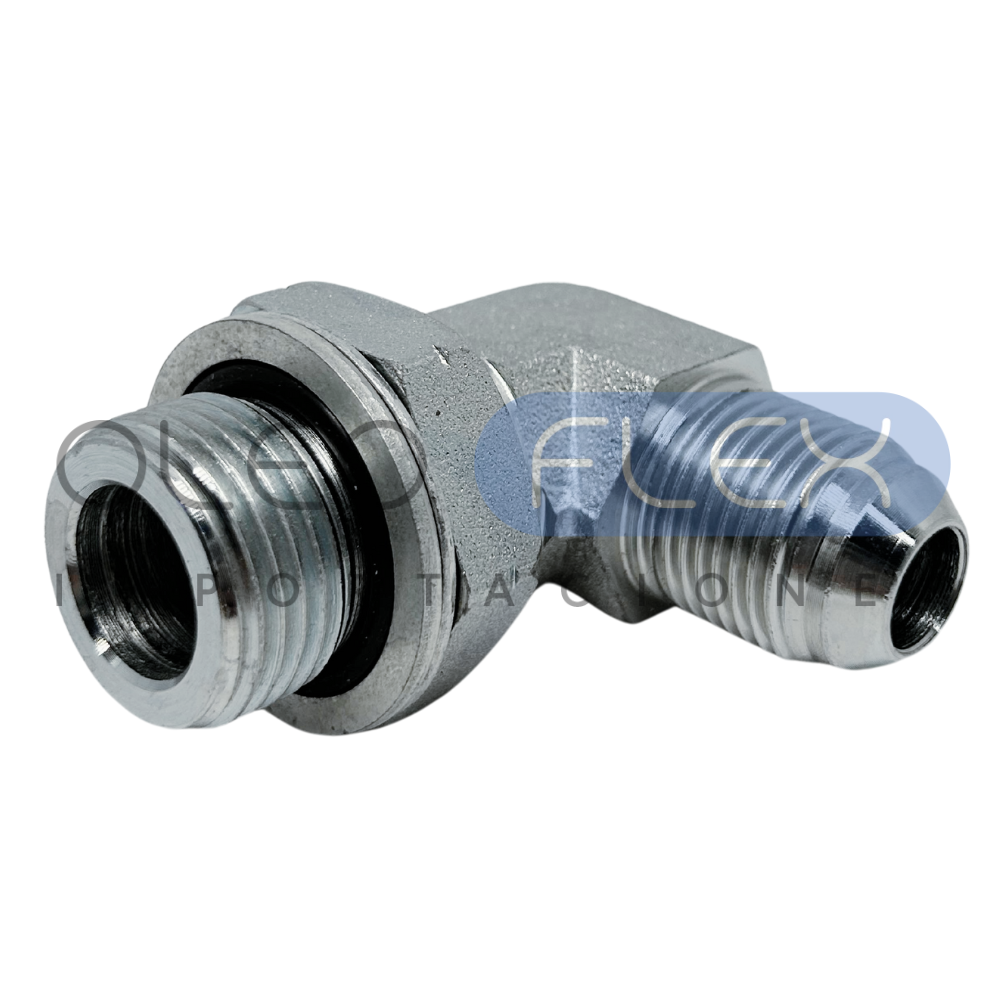

Adaptador macho JIC × macho BSP (MJ-MBSP). Conecta una línea con terminación JIC de 37° a un puerto de rosca BSP paralela. Es una de las transiciones más comunes al integrar componentes americanos (JIC) con equipos europeos (BSP). Recto, 45° y 90°. Elige el ángulo y la medida en los selectores de arriba: cada combinación es un código distinto con su propio stock y precio.
El Adaptador Hidráulico Macho JIC a Macho BSP une un extremo macho JIC de cono 37° (sello metal-metal) con un extremo macho BSP paralelo (estándar europeo), en aplicaciones industriales donde se conectan flexibles con mandos o bombas.
Características principales
- Extremo macho JIC (cono 37°): sello metal-metal
- Extremo macho BSP paralelo, estándar europeo
- Integra componentes de norma americana (JIC) con puertos europeos (BSP)
- Disponible en orientación recta, 45° y 90° para cambios de dirección en espacios reducidos
